  • rubber hose > Chemical Hose > > chemical hose,acid hose,rubber hose,industrial hose

  • Chemical Hose

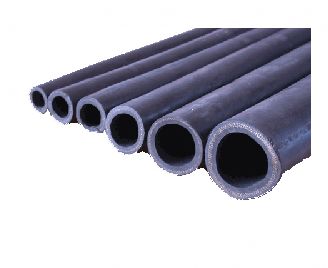

  • Product images
  • chemical hose,acid hose,rubber hose,industrial hose
  • Detailed description
  • Application for chemical hose:
    This chemical hose is applicable to transporting sulphuric acid with concentration below 40%, other inorganic acid (exclude nitric acid) and dilute alkaline solution at room temperature.

    Features for chemical hose:
    This chemical hose is made of special material and rubber with good chemical corrosion resistant performance.
    It has good acid and alkali resistance.

    Specifications for chemical hose:
    TYPE I.D O.D P W.P W.T LEMGHT
    mm inch mm Mpa Psi kg/m lb/ft m ft
    P04-1904 19 3/4 33 4 0.5 71 0.73 0.48 20 60
    P04-1905 19 3/4 35 5 0.7 100 0.82 0.55 20 60
    P04-2504 25 1 42 4 0.5 71 1.00 0.67 20 60
    P04-2505 25 1 44 5 0.7 100 1.20 0.80 20 60
    P04-3204 32 11/4 49 4 0.5 71 1.30 0.87 20 60
    P04-3205 32 11/4 51 5 0.7 100 1.40 0.94 20 60
    P04-3804 38 11/2 56 4 0.3 43 1.50 1.00 20 60
    P04-3805 38 11/2 58 5 0.5 71 1.70 1.14 20 60
    P04-3806 38 11/2 60 6 0.7 100 1.90 1.27 20 60
    P04-4505 45 13/4 65 5 0.5 71 2.00 1.34 20 60
    P04-5104 51 2 69 4 0.3 43 2.00 1.34 20 60
    P04-5105 51 2 71 5 0.5 71 2.20 1.47 20 60
    P04-5108 51 2 77 8 0.7 100 2.90 1.94 20 60
    P04-5704 57 21/4 75 4 0.3 43 2.20 1.47 20 60
    P04-6405 64 21/2 84 5 0.3 43 2.80 1.88 20 60
    P04-6406 64 21/2 86 6 0.5 71 2.90 1.94 20 60
    P04-7605 76 3 96 5 0.3 43 3.10 2.08 20 60
    P04-7607 76 3 100 7 0.5 71 3.80 2.55 20 60
    P04-7608 76 3 102 8 0.5 71 4.10 2.75 20 60
    P04-8904 89 31/2 107 4 0.3 43 3.40 2.28 10 30
    P04-10204 102 4 120 4 0.3 43 3.90 2.62 10 30
    P04-15206 152 6 174 6 0.3 43 6.00 4.03 10 30




  • Tags: rubber-hose industrial-hose chemical-hose acid-hose
